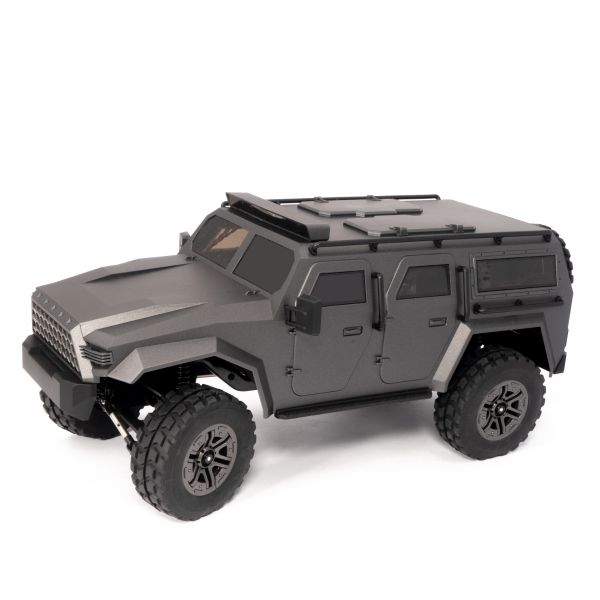

Edge Warrior 1/18 Electric 4WD RC Crawler

Edge Warrior 1/18 Electric 4WD RC Crawler

RC Crawler Manual：

https://www.frsky-rc.com/wp-content/uploads/Downloads/Amanual/Edge%20Warrior%20Manual.pdf

Specifications
Model Crawler

• • Scale: 1/18 Full Simulation Structure
• • Dimensions: 320*162*130mm(L*W*H)
• • Weight: 850g (Battery Excl.)
• • Wheelbase: 180mm
• • Track Width: 150mm
• • Shock Travel: 13mm
• • Ground Clearance: 33mm
• • Approach Angle: 60°
• • Departure Angle: 50°
• • Tires: φ 64mm
• • Motor: 180 Custom High-Speed High-Torque Motor
• • Esc: 3-in-1 10A 3 Channel Integrated Control Esc
• • Battery: 1200mah 7.4V 5C Explosion-Proof Battery
• • Charging Time: ≥2 Hours (Slow Charge) | ≥10 Minutes (14A Fast Charge)
• • Color: Desert Brown / Meteorite Gray / Sky Blue

Pistol Grip

• • Frequency: 2.4ghz
• • Operating Range: ≤200 Meters
• • Operating Time: ≥40 Minutes
• • Transmit & Receive

Model Appearance

• • Tough Off-Road Styling Exterior Design
• • High-Strength and Tough Abs Shell Material
• • Spare Tire Design
• • Tactical Low Visibility Coatings

Chassis System

• • Highly Simulated Non-bearing Portal Axle Four-Wheel Independent Suspension System
• • Open Modular Chassis Structure with Quick Maintenance Ports, Full Modular Quick Disassembly Design
• • Full Simulated Ball Head Linkage Mechanism, Modular High Transmission Efficiency Planetary Gearbox Mechanism
• • 1.2mm High-Strength Stainless Steel Beams
• • Simulated Wheel Edge Reduction Mechanism
• • Front Wheel Anti-Ackermann Angle Design
• • Integrated High-Strength Nylon Material, Structure Reinforcement, Shockproof and Drop Resistant

Material Technology

• • Mim Process High-Strength Silent Stainless Steel Gear Set
• • Full Metal Custom Cvd Drive Shaft
• • Precision Machined Stainless Steel Ball Head Screws
• • 24mm Extra Wide Hollow Rubber Crawler Tires
• • Universal 1.5mm Hex Screws for the Entire Crawler

Electronic Configuration

• • Three-Speed Three-Mode Intelligent Esc Control
• • Headlights, Taillights, Turn Signals, Spotlights with Simulated Linkage to Steering and Throttle, Adjustable in Three Modes
• • Real-Time Adjustable Esc Start Strength and Brake Force
• • Monochrome 1.8 Inch Lcd Pistol Grip Screen
• • On-Board 1200mah 7.4v 5c Large Capacity Explosion-Proof Battery
