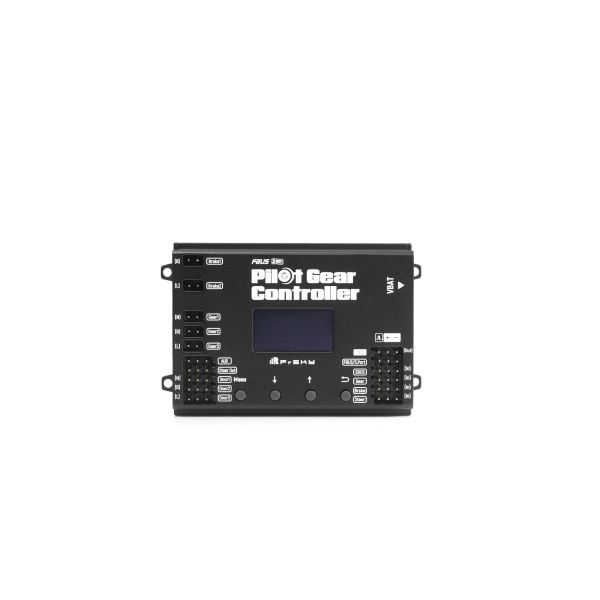

FrSky Pilot Gear Controller (PGC)

OVERVIEW

The Pilot Gear Controller (PGC) module is a control system not only functional for the landing & door gear of
the Jet/Plane which includes a landing system, also incorporates an adjustable brake capability and adds the
Gyro assist function for all the wheels (steering and brake) to get you each flight a smooth take-off and landing
experience.

Apart from the functional features, providing a stable and reliable power supply system with flexibility is also a
big integrated advantage. There are 3 individual BEC voltage outputs for different connected devices
separately, and users can also prefer a one-battery solution to power the PGC and its connected gears and
receivers.

FEATURES

• Landing & Door Gear Control System
• Adjustable Braking Performance
• Wheels’ Gyro Assist Capability
• 3 Independent Adjustable BEC Voltages
• Voltage Output Supply with Stability and Reliability

SPECIFICATIONS

• Dimension: 68.6×50×18mm (L×W×H)
• Weight: 81.6g
• Battery Input Connector: XT30
• Battery Voltage Input Range: 8.4-60V
• Operating Current: 65mA@12V
• Adjustable Voltage Output Range：6.0V~12V
  Note: 6-12V output can be FULLY adjustable under powering by a battery of 4S to 14S. While powering with a 2S/3S battery, the output volts can also be adjustable, but not achievable up to 12V (output upper limit is less than its input)
