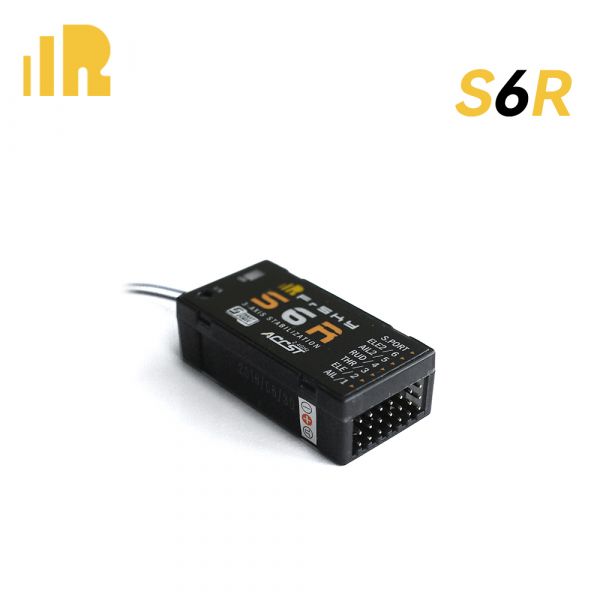

FrSky S6R 6 channel Receiver with 3-axis Stabilization

Specifications

Model Name:S6R (6ch receiver built-in 3-axis gyro and 3-axis acceleration)

Dimension:47.42*23.84*14.7 mm (L*W*H)

Weight:12.1g

Number of Channel:6CH(1-6CH from conventional channel outputs)

With RSSI output on board:PWM voltage output(0~3.3V),100HZ,1500±500uS

Operating Voltage Range:4.0-10V

Operation Current:100mA@5V

Operating  Range:full range

Gyro Measurement Range:±2000dps

Accelerometer Measurement Range:±4g

Firmware Upgradeable

Compatibility:

• Frsky DFT/DJT/DHT in D8_mode
• Frsky Taranis X9D Plus/X9E/Horus X12S/XJT in D8 mode
• Frsky Taranis X9D Plus/X9E/Horus X12S/XJT in D16 mode
• S6R-EU only works with Frsky Taranis X9D Plus-EU/X9E-EU/Horus X12S-EU/XJT-EU in D16-EU mode

Features

• Built-in a three-axis gyro and three-axis accelerometer sensor module
• With RSSI PWM output (0~3.3V) on board
• Built-in battery voltage sensor
• Smart Port enable
