FrSky Taranis X-Lite Pro & S Main Board

FrSky Taranis X-Lite Pro & S Main Board

FrSky Taranis X-Lite Pro 24CH Radio

FrSky Taranis X-Lite Pro 24CH Radio

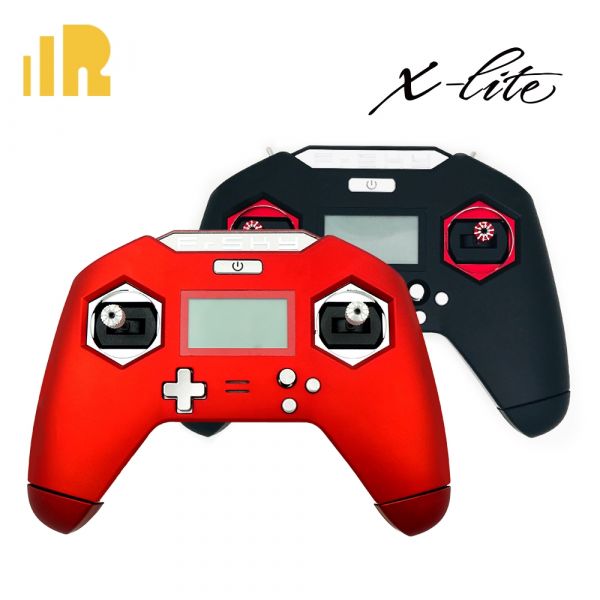

(Only available in USA warehouse)FrSky Taranis X-Lite 2.4GHz Radio Controller Black and Red Color,

Special Price $99.99 was $149.99
Availability: In stock
SKU
X-Lite-Sale

Get ahead of the curve with the next game changing transmitter from FrSky, the Taranis X-Lite. This revolutionary radio blends the functionality and reliability of FrSky Transmitters with a compact Game-Style controller. The X-Lite is ergonomically designed, featuring four switches and two sliders, which means you can still fly your Fixed-wing models as well as multirotors and helicopters. Compact in size means you can take it virtually anywhere. It features a Haptic Vibration Feedback System along with the voice and sound alert warnings. The X-Lite has the smoothest control possible with the pre-installed high precision M12 Lite hall sensor gimbals. The easy to access battery bay allows for quick, worry-free battery swaps. The X-Lite runs on the familiar OpenTX software, and the model memory is expandable with the addition of your own micro SD card. Like all of our new transmitters it has a wireless feature that lets you link up wirelessly to other FrSky radios for training; additionally, it can link up to the FrSky FreeLink App for monitoring telemetry and configuring receivers. Long range is an option with the support of the upcoming R9M Lite 915/868MHz module. Other features include Receiver Match, Real-Time Flight Data Logging and Super Low Latency for competitive flying. Overall this Radio has all the features of its predecessors in a smaller package at an unprecedented value.

Note: The X-LITE package doesn't include batteries inside.You can buy the batteries on the local market.





Here is the instruction for the suitable batteries of X-LITE:

  • 18500 Li-ion Batteries
  • flat top
  • Diameter:18mm
  • Height:50mm
  • there should be 2 batteries and each are placed in a seperate compartment.
  • The batteries can not be charged inside the radio.



SPECIFICATION
● Number of Channels: 16 channels
● Weight: 308g/ 376g (with battery)
● Operating Voltage Range: 6.0 ~ 8.4V
● Operating Current: 190mA@7.4V
● Operating Temperature: -20 ~ 60℃
● Backlight LCD resolution: 128*64
● Model Memory: 60 models (extendible by Micro/TF card)


FEATURES
● Ergonomic and compact design
● M12 Lite gimbal
   ✧ High accuracy hall sensor gimbal
   ✧ Mode conversion adjustments accessible without disassembly
   ✧ CNC machined gimbal pedestal
● High-speed internal and external module digital interface
   ✧ Internal: 450K, External: 420K
   ✧ Super low latency (Total latency < 20ms, lowest to 12ms)
   ✧ Compatible with new lite type external modules (R9M Lite, MPM Lite, etc.)
● Installed open source operating system– OpenTX
● Haptic vibration alerts and voice speech outputs (Headset jack and inbuilt speaker)
● Internal antenna and external antenna connector
● 128*64 outdoor readable backlight LCD
● Smart Port,  Headset jack, Micro SD card slot and Micro USB Port (*Charging function unsupported.)
● The easily accessible battery compartment uses replaceable 18500 Li-ion batteries
    (*Batteries Not Included)
    (*Battery Information: Flat Top / Height: 50mm / Diameter: 18mm)
● Trims: The four-way navigation is the trim1 ~trim2, and it will act as trim3~trim4 with pressing on 'SHIFT' button
Wireless function (Optional)
   ✧ Compatible with FrSky Free Link App
   ✧ Support wireless trainer system
 (* Need additional parts or order specific model)

Includes

  • 1 x X-Lite Radio Controller
  • 1 x Manual sheet
  • 1 x eva case



Download FrSky X-Lite Relevant Files
