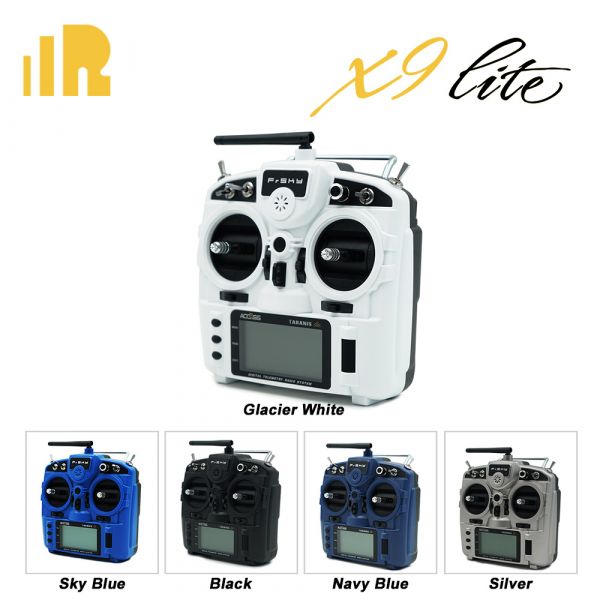

2019 FrSky 24CH Taranis X9 Lite Radio Support ACCESS and D16 Mode

As a portable radio, the FrSky Taranis X9 Lite is a remarkable fusion of traditional radio design with the innovations of the latest ACCESS protocol. The X9 Lite inherits its classic form factor from the FrSky Taranis X9D series remote control, along with completely preserving the comfort of the classic grip design, it also adds a program scroll button adding convenience when navigating the menu further improving the user experience. For beginners, the wired training function is retained, allowing beginners to improve their skills with the security of an instructors input upon command.

Like the Taranis X-Lite Pro, the new Taranis X9 Lite also uses the latest ACCESS communication protocol, along with ErskyTX / OpenTX open source operating system, it boasts 24 channels with a faster baud rate and lower latency with a high-speed module digital interface. Additional ACCESS features like wireless firmware updates and wireless configurations will be gradually unlocked, providing a more reliable, more secure link between the remote and model. Making the X9 Lite a fully functioning remote control with tons of extra features.

Specifications

• Dimension: 184*170*101mm (L*W*H)
• Weight: 505g (without battery)
• Operating system: ErskyTX / OpenTX
• Number of channels: 24 channels
• Internal RF module: ISRM-N
• Operating voltage range: 6.0~8.4V
• Operating current: 190mA@7.4V
• Operating Temperature: -10℃ ~ 60℃  (14℉ ~ 140℉)
• Backlit LCD resolution: 128*64
• Model memories: 60 models (expandable by Micro SD card)
• Smart Port, Micro SD card slot, Micro USB Port and DSC Port
• Compatibility: ACCESS and ACCST D16 mode receivers

Features

• Ergonomic and compact design
• Installed with ACCESS protocol
• Supports spectrum analyzer function
• High-speed module digital interface
• G7 Noble potentiometer gimbal
• Supports wired training function
• Haptic vibration alerts and voice speech outputs
• Easily accessible battery compartment (*Batteries not included, adaptive with replaceable 18650 button top Li-ion batteries)

Includes

• 1 x X9 Lite Radio Controller
• 1 x Manual

Comparison List

☆ ACCESS is not avaiable, to be confirmed.

FrSky Taranis X9 Lite Gimbals Adjustment (Mode1 Mode2)
